Pipe Diameter (O.D)

min. 4” (101.6 mm); max 42” (1066.80 mm)

Radius

min. 100 mm; max. 11000 mm

Wall thickness

5mm to max.50 mm

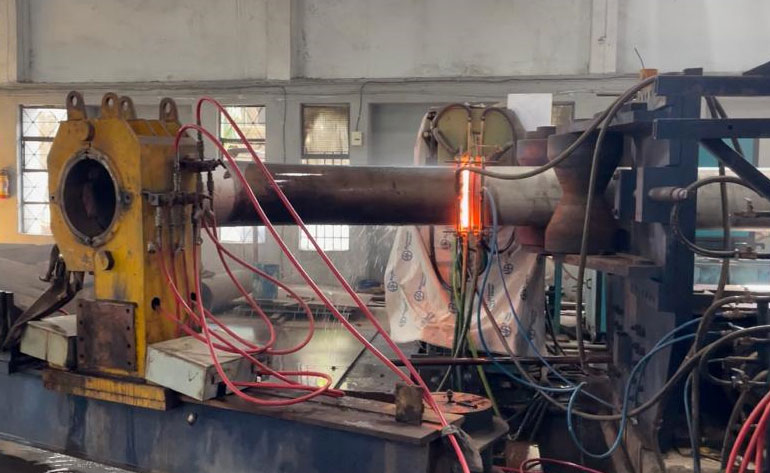

Hot Bend Heating system

max. 1030 KW

Bending capability

15,000 metric tons per year

Wall Thickness

5mm- 50mm / SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Pipe Bend Radius

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Straight Length L

300mm and 1500mm

Pipe Bend Angle

0°- 180°

Hot Induction Bend manufacturering Standards

• DIN, ASTM, ASME, MSS, EN, and JIS codes and standards
• ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
• DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
• EN: EN10253-1, EN10253-2

Pipe Bend Standards

• ASTM A403- ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
• ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
• ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns
• MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
• ASME B16.49 – factory-made carbon steel Pipe bend

Production Grades

Carbon Steel, API 5L, ASTM A106 Grade B, Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Copper, Cupro Nickel, Inconel, Monel, Hastelloy

Value Added Services

Epoxy & FBE Coating, Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Threading, Soldering

Stainless Steel Hot Induction Bend

ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Carbon Steel Hot Induction Bend

ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel Hot Induction Bend

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Hot Induction Bend

ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Duplex & Super Duplex Hot Induction Bend

ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Manufacturer of induction bend

• Bending of single-length pipe spools in multiple radius (2D, 3D, 5D)
• Providing pre-fabrication of high-pressure piping systems
• Heat treatment (normalizing, stress relieving, tempering, water quenching…)
• End: weld end, plain end preparation and tapering
• Grit blasting and painting
• Pickling and passivation
• Internal and external coating ( FBE, PE, PP, concrete weight coating…)

Inspection for ASTM A420 WPL3 Bend

• Visual the surface finish of 3D bend body. Such as die marks, dents, porosity, undercuts.
• Measure dimensions like OD, inner diameter, wall thickness, and radius

Marking Sample

12″ Sch40 90 Degree 3D SMLS ASTM A420 WPL6 ASME B16.9 / B16.49 HEAT NO.

Stainless Steel

ASTM A403 WP304/304L, WP304H, WP316, WP316L, WP310, WP317, WP321 ASTM A312 / A358

Duplex Steel

ASTM A815 UNS S31803, S32205, S32550, S32750, S32760 / A790

Carbon Steel

ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70 / ASTM A106 / API 5L

Low Temp Carbon Steel

ASTM A420 WPL3, WPL6, WPL9 / A333

Alloy Steel

ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91 / A335
